Tech Breakdown: Zortrax Inkspire UV LCD Resin 3D Printer

The sphere of high-resolution 3D printers continues to develop with the Zortrax Inkspire UV LCD Absolutely Assembled 3D Printer. Utilizing LCD expertise offers the Inkspire a leg up on different SLA strategies with extra pace, and extra accuracy than ever earlier than.

Overview of the Zortrax Inkspire UV LCD Absolutely Assembled 3D Printer

LCD 3D printing is predicated upon liquid resin photopolymers that react by solidifying when uncovered to a excessive powered gentle supply. Whereas it’s intently associated to DLP (Digital Mild Processing), which makes use of a digital gentle projector to flash total layers onto the underside of the FEP vat, LCD (liquid crystal show) use a show product of 1000’s of tiny UV (ultra-violet)  LCDs that additionally flash your entire layer directly, at a later decision of 50×50 microns and a minimal layer top of 25 microns. As a result of the photoreaction happens concurrently over your entire layer floor, the pace of printing an object is drastically elevated over a single laser-spot SLA 3D printer.

The Zortrax Inkspire resin tank permits for a construct quantity of 74mm x 132mm x 175 mm (2.9 x 5.2 x 6.9 in) and demonstrates a constant print pace leading to a Z-height of 20-36mm per hour relying on the footprint of your entire print. The layer top could also be adjusted to accommodate 25, 50 or 100-micron layers and sports activities a minimal function dimension of fifty microns. The system is wifi enabled which permits for seamless migration and integration of supply half recordsdata from design to closing print. It makes use of Z-Suite which can be utilized with Home windows, Mac Os, and the Zortrax Inkspire itself runs on an Android-based system that many customers will already be aware of.

The Zortrax Inkspire assortment of resins and equipment offers the person quite a lot of choices for his or her 3D printing wants. Along with their very own resin assortment, which has devoted settings included within the software program, Zortrax has enabled the Inkspire to be suitable with any UV resin that may be cured with a wavelength of 405 µm. Parameters resembling relaxation time or publicity share may be set manually and saved in profiles for use sooner or later with out having to undergo the setup course of once more.

The benefits of the Zortrax Inkspire embrace greater print pace, greater print decision, decrease manufacturing value, and elevated effectivity.  With print pace, solely the peak (Z) of the mannequin issues. The mannequin’s complexity, quantity, or footprint don’t issue into the pace. This additionally permits for the combination of a number of fashions in a single print. In comparison with laser-based SLA printers, the Zortrax Inkspire UV LCD printer is as much as eight instances quicker.

Along with the decision and print pace of the Zortrax Inkspire, the touchscreen offers the person one other easy accessibility level to observe, pause, change and restart prints at any stage. This helps save on resin, and time, and will get the person to a profitable print rapidly and simply. With WiFi enabled, all these adjustments may be made remotely with person assist with the included software program, Z-Suite.

The Zortrax Inkspire additionally contains one of many extra cost-friendly choices in resin 3D printing – a swappable FEP movie vat. As a substitute of changing your entire vat when it turns into too cloudy or scratched from use, you may merely exchange the interface FEP movie with a brand new sheet. This can be a way more cost-effective resolution and helps any customers cost-per-print come down considerably.

Lastly, the Z-Suite software program, included without spending a dime, is extraordinarily simple to make use of as soon as it’s arrange. New customers are required to register the software program on-line upfront utilizing the machine serial quantity, which is the one sticking level in the entire arrange course of. In any other case, Z-Suite offers the person full management over each facet of the setting of the LCD, along with having the ability to save profiles for tons of of exterior resins for open supply use you nearly can’t beat.

Last Takeaway on the Zortrax Inkspire UV LCD 3D Printer

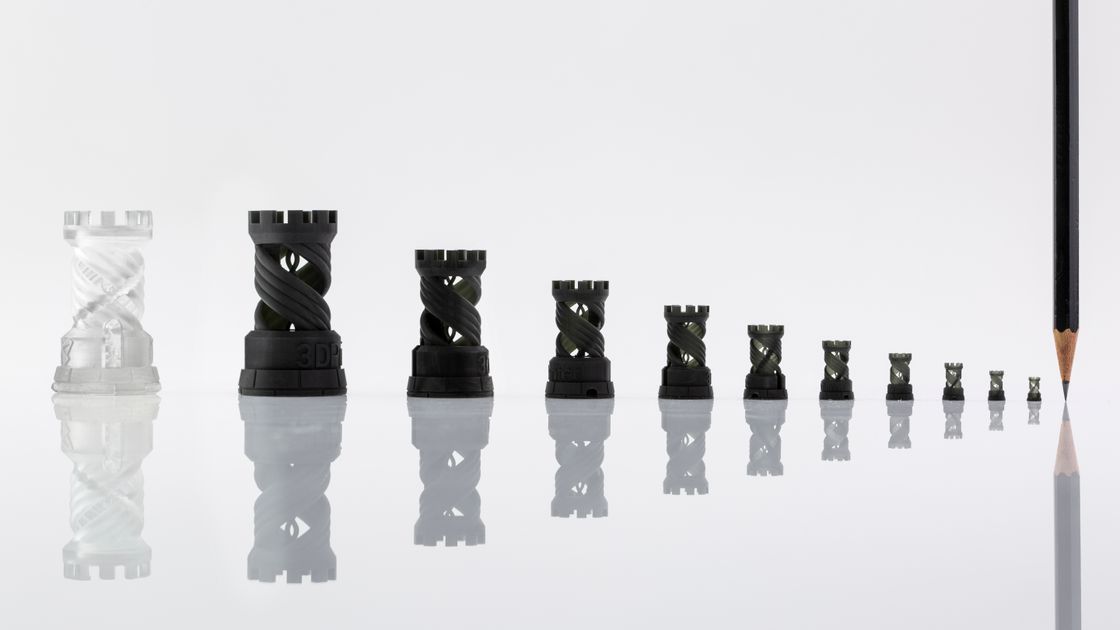

The Zortrax Inkspire is likely one of the finest LCD resin printers we’ve examined within the store. From the short, simple setup – the rook take a look at print got here out excellent out of the field – to the standard of prints, ease of use with exterior resins, to monitoring and ease of use, anybody would profit from including the Zortrax Inkspire to their 3D printing workflow as a high-resolution, user-friendly resolution.
